Product details
EXPLORE NEW GROUND

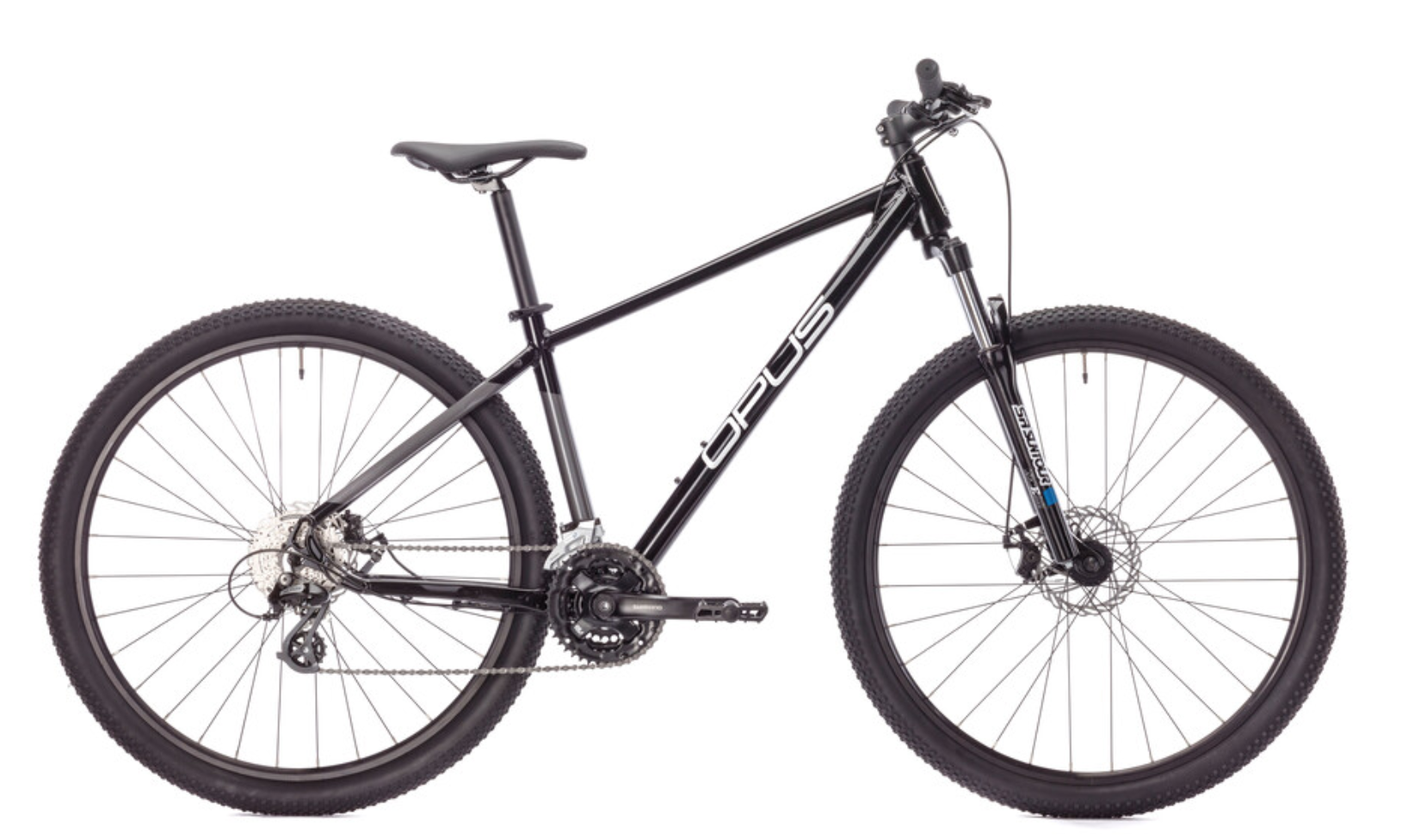

Discover new trails on the Recruit 5. This always-nimble mountain machine is equipped with a dependable Shimano drivetrain, front and rear mechanical disc brakes and 100 mm of front suspension. Not to mention all-terrain tires to tackle any obstacle that dares to get in your way. So suit up and flatten some trails!
Features
- Lightweight trail inspired aluminum frame
- Suntour 100 mm fork
- Shimano 3x8 drivetrain
- Front and Rear 160 mm mechanical disc brakes
- xs/s - 27.5 inch wheels, m/l/xl 29 inch wheels
Specifications
| Frame | Meta 20 aluminum |
| Fork | Suntour XCE28 DS 100 mm |
| Sizes | XS-S-M-L-XL |
| Shifters | Shimano Altus 3 x 8 |
| Front Derailleur | Shimano Tourney |
| Rear Derailleur | Shimano Altus |
| Brakes | Jak-7 mechanical disc brakes - 160 mm |
| Brake Levers | Shimano ST-EF500 |
| Crank | Shimano TY301 |
| Chainrings | 42-34-24 |
| Bottom Bracket | FP-B907 |
| Cassette Cogs | Shimano 11-32 |
| Chain | KMC Z7 |
| Headset | NECO semi-integrated |
| Handlebar | Opus Bronze 15 mm rise 31.8 |
| Stem | Opus Bronze |
| Grips/Tape | Velo Kraton |
| Saddle | Opus Endurance |
| Seatpost | Opus Bronze 31.6 x 350 |
| Wheels/Rims | Ace alloy |
| Hubs | Shimano TX505/MT200B |
| Tires | Innova 27.5 x 2.35 / 29 x 2.35 |
| Pedals | FPD NW-420 |
Geometries
| SIZE | XS | S | M | L | XL |
| SIZE (CM) | |||||
| RIDER (± 5CM) | 155 | 163 | 170 | 178 | 185 |
| RIDER (± 2") | 5'1" | 5'4" | 5’7” | 5'10' | 6’1” |
| SEAT TUBE | 380 | 400 | 430 | 460 | 490 |
| TOP TUBE | 551 | 575 | 597 | 635 | 647 |
| HEAD TUBE | 95 | 100 | 105 | 110 | 120 |
| HEAD ANGLE | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 |
| SEAT ANGLE | 74 | 74.5 | 74.5 | 73 | 73 |
| CHAIN STAY | 450 | 450 | 450 | 450 | 450 |
| BB DROP | 50 | 50 | 55 | 55 | 55 |
| STACK | |||||
| REACH | 380 | 380 | 420 | 440 | 450 |
| STAND OVER | |||||
| BAR | 720 | 720 | 740 | 740 | 740 |
| STEM | 45 | 45 | 45 | 60 | 60 |
| CRANK | 170 | 170 | 175 | 175 | 175 |
