Product details

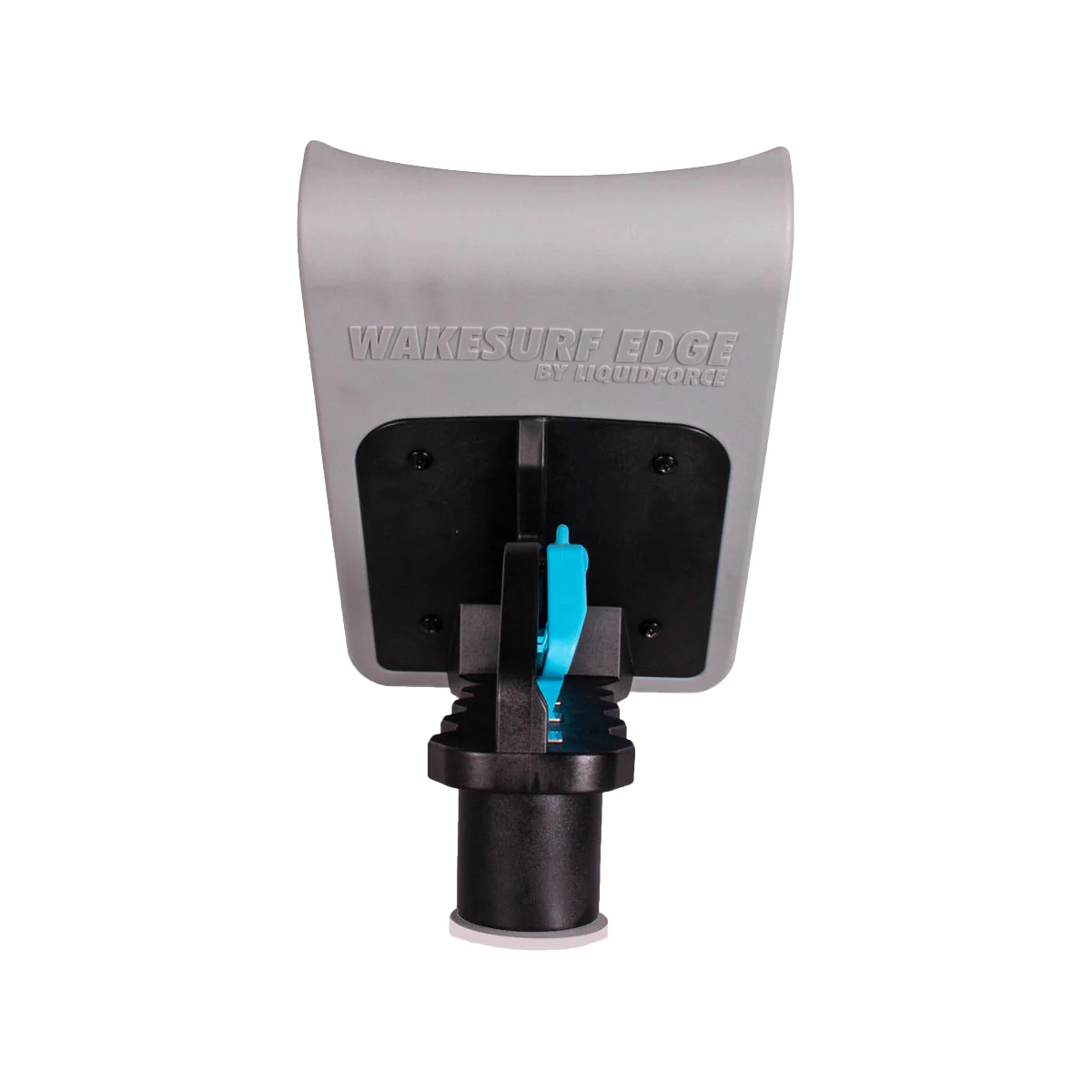

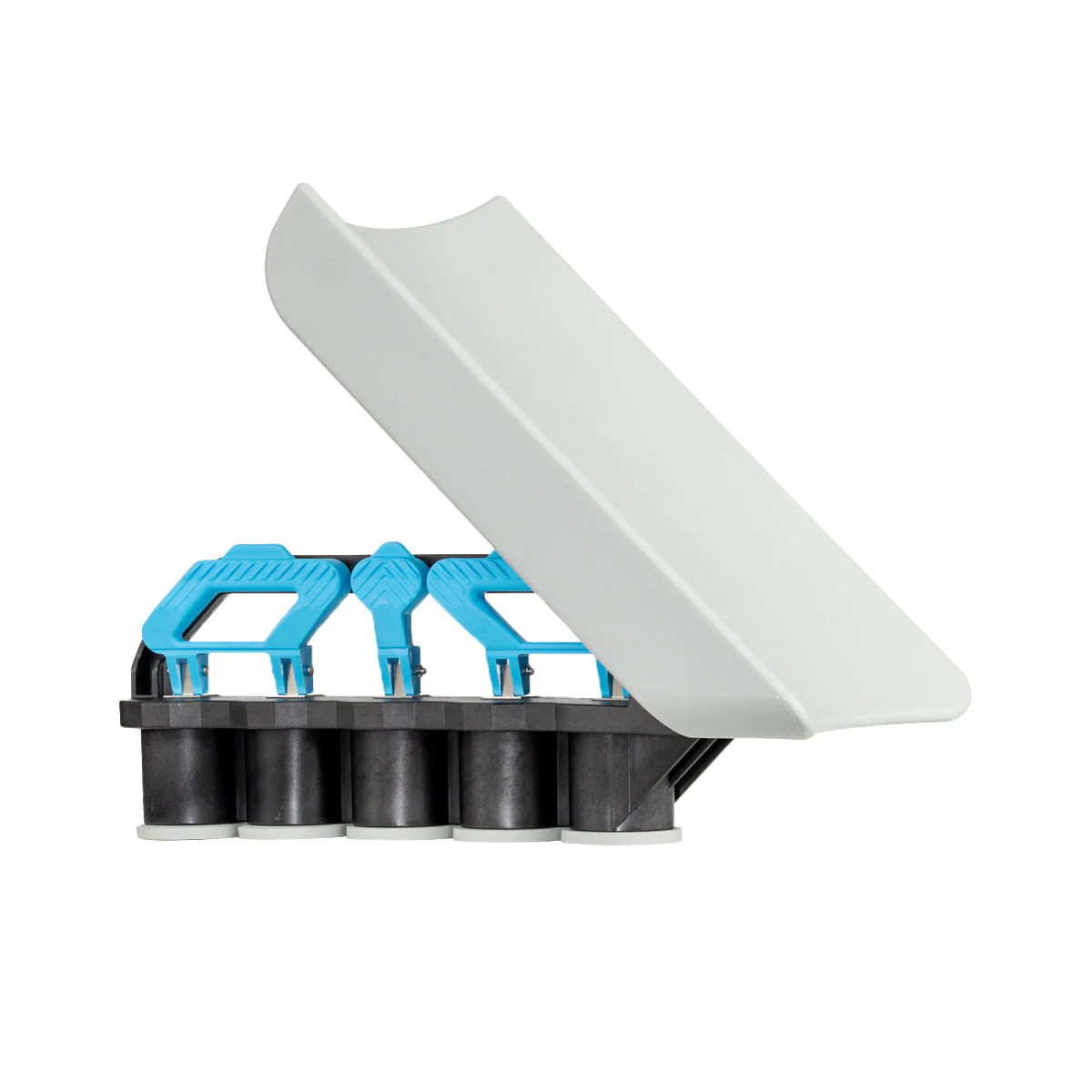

Inline Suction Cup Attachment
Our New Inline shaper is designed to fit radically stepped hulls with narrow strakes and heavy curves. 5 inline 2 inch rubber suction cups securely grip the hull and won’t damage gel coat or leave black markings on your boat. Easy to adjust on the fly, No ugly Velcro or safety tethers required.
Large Water Displacement Wing For maximum wave height
Wake Shaper face 9 x 16 inches = 144sq inch face

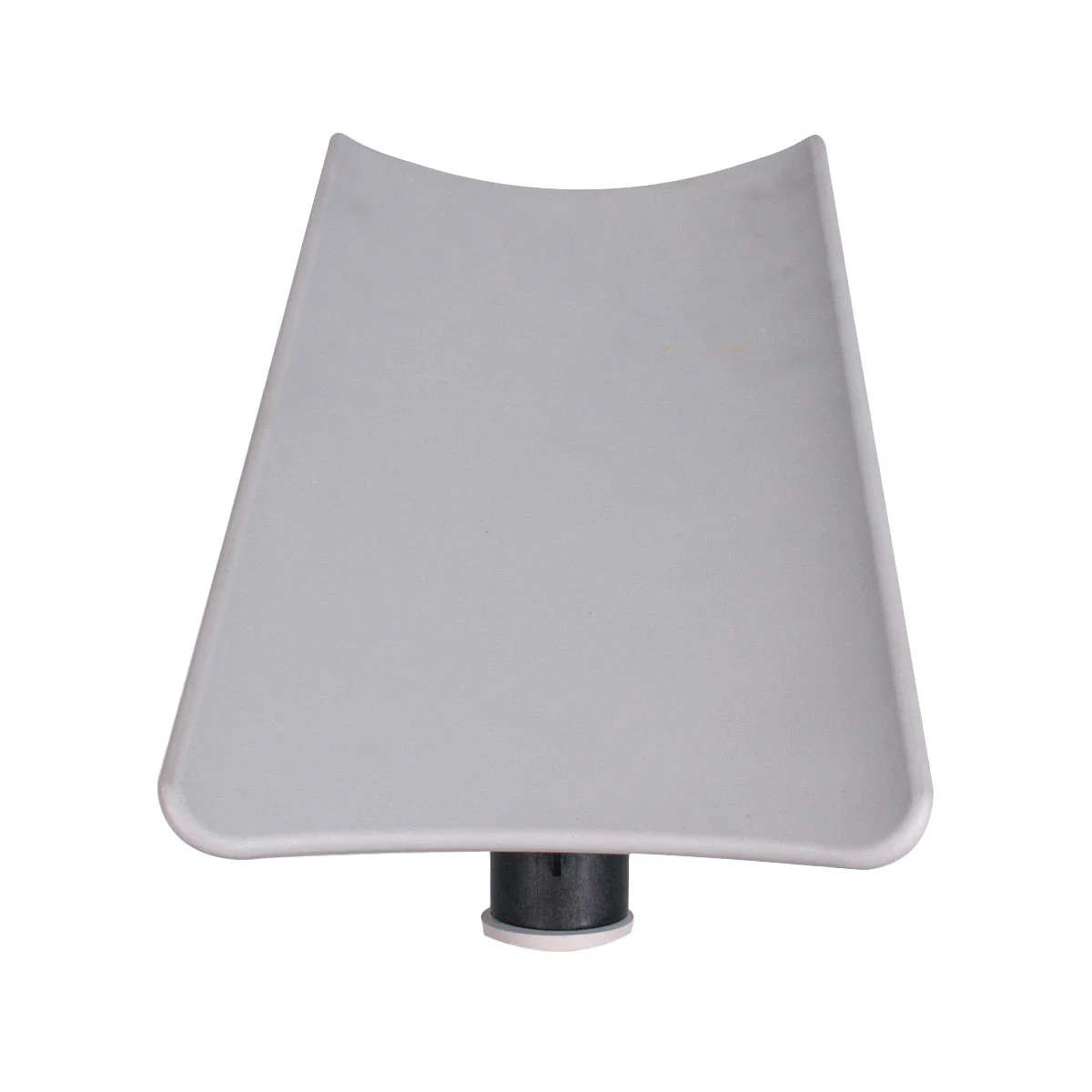

Patented Concave Water Channeling Wing
Our concave channeling wing surface pushes more water to increase the length of the wave, while keeping the face super clean!
Made with Durable Rust Free Materials
We Build the WakeSurf Edge with impact resistant, lite weight glass filled nylon and rust free stainless steel hardware. Our shaper is long lasting; won’t rust or stain your boat.
Built In Flotation
Don’t worry about your wake shaping investment sinking to the bottom. The Wakesurf Edge wing is rotomolded and sealed air tight.
Make the most of the WAKE SURF EDGE
We recommend a Sumo water ballast system. Level load your boat to keep the nose down for the captain’s visibility and a longer wake.
BOOST YOUR BOATS SURFING WAVE
The LF Wakesurf Edge Inline Pro Wake Shaper 145 will make big wakes BIGGER! The Inline Pro 145 requires a flat surface measuring 3" tall by 13" long - hulls with an outward curve of more than 1/4" over 5", this is YOUR shaper! WSE suction cups will accommodate hull curvaturewith a series of five 2" cups to secure your shaper.
This model of the WSE Line Up is essentially universally compatible, making it work on most makes and models of boats. The adjustable design allows you to shift the WSE location on the fly to fine tune the perfect wave.
Product Features
- Shaper Face Dims: 9in x 16in = 144in2
- Patented Concave Water Channeling Wing
- Super Strong Dual Suction Cup Attachment
- Series of 5 Cups - 2" Diameter
- Made with Rust-Free Materials
- No Worries - IT FLOATS!
- DO NOT tether Wake Shaper to Boat
Benefits
LARGE WATER DISPLACEMENT
Large Water Displacement Wing for Maximum Wave Height!
UNLEASH YOUR WAVE
Unlock your boat's full potential, and enjoy the surf wave you've been dreaming of!
KEEP IT SAFE
Level load boat to keep nose down for the Captain's visibility and a long wave.
WHERE TO ATTACH
PLACEMENT OF YOUR WAKESURF EDGE
Use the diagram for a good starting point to attach your Wakesurf Edge. It's important to note that when your boat is still in the water it sits at a different angle than when your boat is pulling at wake surf speed. Attach your Wakesurf Edge at a slight upward angle to reflect the angle that your boat will travel in during the ride. That will ensure that the face of the Wakesurf Edge is causing optimal water flow obstruction and forming the best possible wave shape. A good rule of thumb on how deep to attach the Wakesurf Edge is to attach it so that 2 or 3 inches of the Wakesurf Edge is sticking out of the water. Remember that the back of the boat sinks down upon acceleratation.
FORWARD ON THE BOAT
Placing the Wakesurf Edge more forward up the boat will cause the wake to be mellower, longer, and have more push.
BACKWARD ON THE BOAT
Placing the Wakesurf Edge all the way back on the boat will cause the wake to be steeper, shorter, and have a deeper pocket.

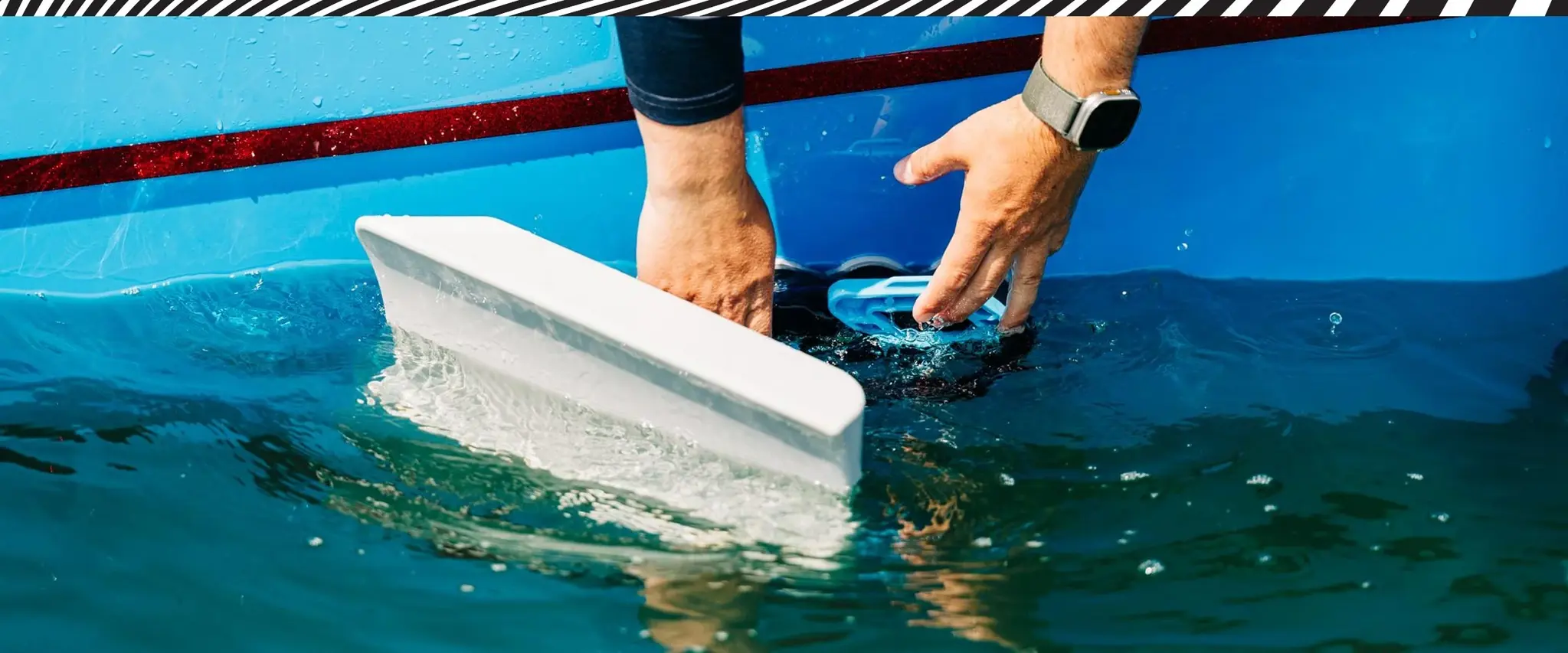

HOW TO ATTACH
CLEAN SUCTION
cup on the Wakesurf Edge and the contact area on the boat
ATTACH THE
Wakesurf Edge to the opposite side of the rider, at or below water line near the stern of your boat
PRESS THE HANDLES
firmly against boat and flip up the the suction engagement levers
GIVE IT A SHAKE
to ensure it is suctioned firmly to your boat. If not, try again
GO SURF!
Wakesurf Edge is not meant for speeds greater than 13mph
TO DETACH
flip down engagement handles, and press firmly just above the logo
HOW WAKESURF EDGE WORKS
HOW A WAKE IS FORMED?
A question we overlook sometimes, but is important to understand when shaping your own custom wakesurf wave. A wake is formed when the water surrounding the mass of your boat converges as the boat moves through the water. The faster the speed, the faster the water converges to fill the void that the weight of your boat makes in the water. The heavier your boat is (ballast) the deeper the boat sinks and creates a deeper hole in the water and thus creates a larger void for the water to fill after the boat moves. Tah Dah! A better wake!
HOW TO FINE TUNE YOUR WAKE
Don’t settle for just ANY wake. You have the power to form and shape your wake for the most amount of fun possible behind your boat. You just need to know how to distribute your weight (ballast) appropriately on the boat. If you have too much weight just in the back, your wake will be tall and short. (Refer to the above information on why that is.) If you have too much weight (ballast) in the bow of your boat your wake will be longer but very small with no shape. The key is to balance the weight in the bow and in the back to make that perfect space for the water to converge and form a great wake.
HOW THE WAKESURF EDGE CREATES YOUR WAVE
As your boat sits deep in the water and moves, the water flows down the sides of your boat at an equal rate. By placing the Wakesurf Edge it channels the water flow on one side, causing the boat to yaw slightly and re-shaping that void in the water that the boat creates. Once the boat moves through the space at that angle, the water then converges at a different rate and shapes one side of the wake cleaner than the other. It’s all about how that water converges and the rate at which it colides and forms the wave.
